Standard Arena Swing Gate 4 Ft X 10 Ft (5 Rail) 14 Gauge

10ft Arena Gate (5-Rail) For Sale

Use our standard 10ft arena gates to create an opening in your riding arena, pasture, or paddock that will allow you to pull vehicles or ranch equipment in and out of.

Key Features:

• Made in USA
• Welded end caps
• Expert welds
• Welded on hinges (post included)
• Set post in concrete

Panel Size:

• Post: 1-5/8"
• Rails: 1-1/4"
• 14-Gauge Steel
• Length: 10 Ft
• Height: 4 Ft
• Space between rails: 10-1/4"

Includes:

• Drop latch system
• Welded on heavy duty hinges with ball bearings
• Fully adjustable J bolt
• 1-5/8" post for latching
• 2-3/8" post for gate to hang on

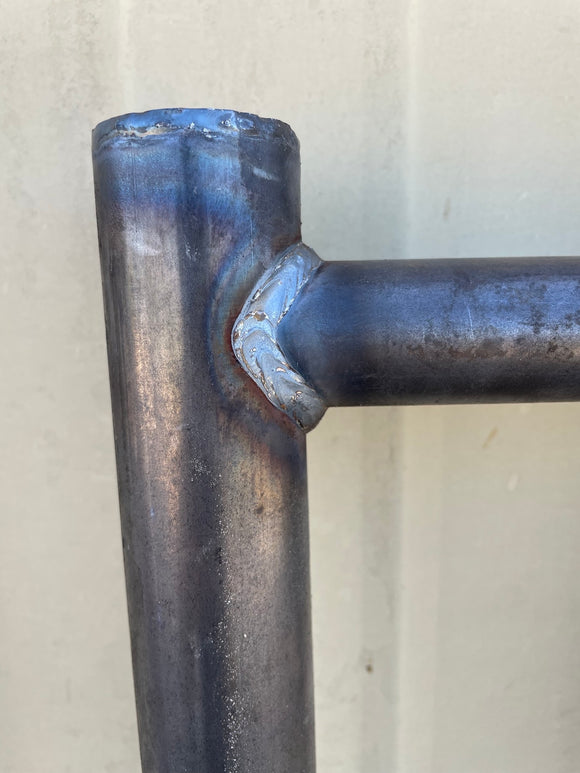

The bare metal panels will get the same patina/surface rust as the oil pipes that all working ranches use. Bare metal orders are normally made to order and may require longer production lead times. If you don't want the rustic-look, then go with our powder coated panels.

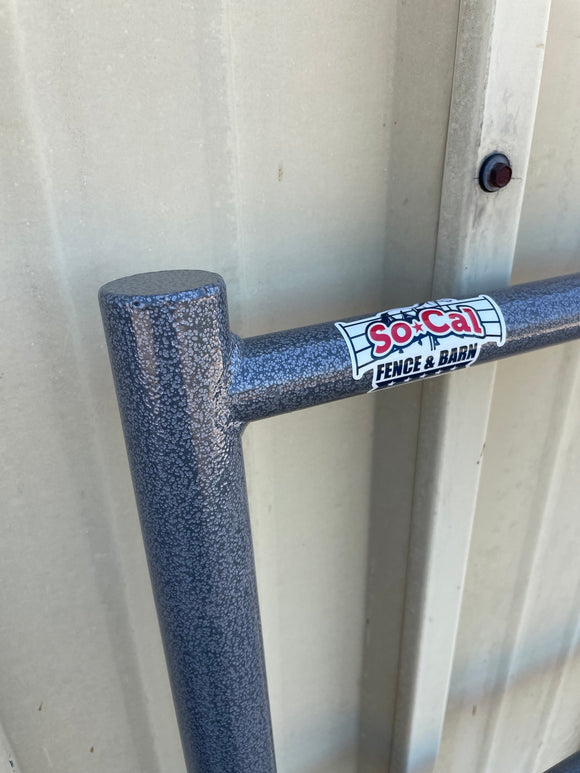

CLASS C POWDER COATING

Durable and cost-effective finish though not as strong as Class A. Minor scratches, chips, and blemishes are common. Additional scratches can occur during transit, touch-up paint available if needed.

HOW TO PLACE AN ORDER:

1. Submit an order request by adding the product to your Shopping Cart.
2. On the Shopping Cart page, simply fill out your complete information then submit your order request.
3. We will respond back with a estimate/invoice.
4. Complete your purchase conveniently with electronic payment method.
