Mare Motel Shed Row with (4) 12x24 Stalls and 12ft Breezeway 5-Rail WOOD INSERTABLE PANELS

22x48 Mare Motel Shed Row with (4) 12x24 Stalls and 12ft Breezeway

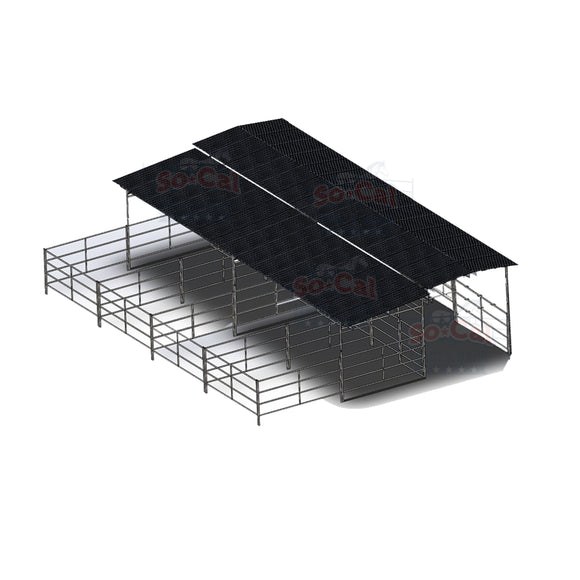

***NOTE: MAIN IMAGE IS A COMPUTER RENDERING FOR EXAMPLE PURPOSES ONLY***

This is our premium DIY mare motel shed row style which has four 12x24 stalls and a 12ft wide breezeway. Available in bare metal/rustic or power coated.

Color: Choose from bare metal/rustic or powder coated which is protected against rust.

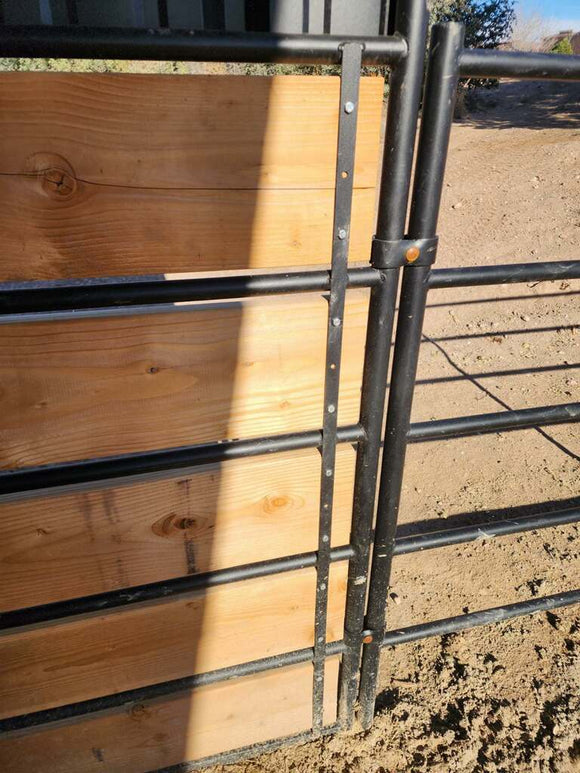

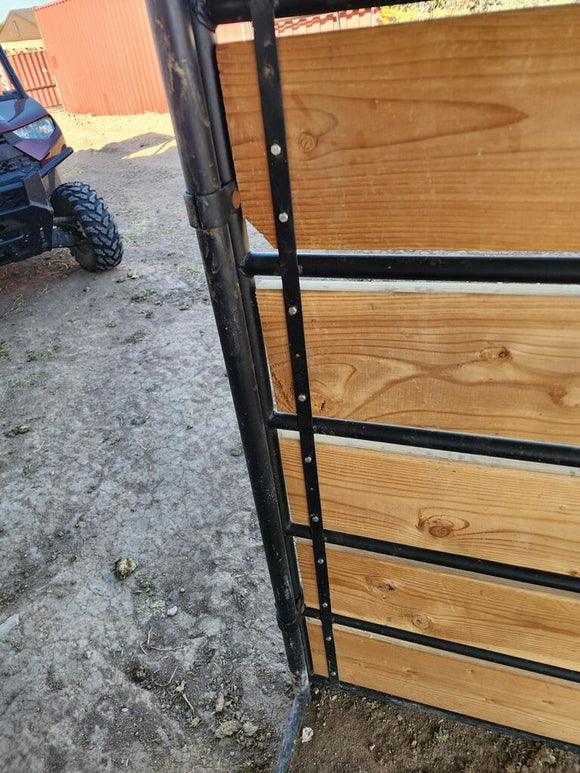

*This option has the wood insertable panels. Wood NOT included. Use 2x10s.

Features:

• Steel Tubing (14 Gauge)
• High quality welds/craftsmanship
• Welded end caps
• Easy DIY assembly/install
• Each panel clamps together

Panel Size:

• Post: 1 5/8"
• Rails: 1 1/4"
• Center Support Tube: 1-1/4"

• Material thickness: 14 Gauge Steel

• Panel Length: 12 Ft
• Panel Height: 5 Ft
• Breezeway Height: 9-10ft
• Space between 4 rails: 14 1/4"
• Space between 5 rails: 10 1/4"

DIY Kit Includes:

• (9) 12ft shelter panels

• (5) 12ft breezeway trust
• (28) Z purlin trusses
• (4) 12ft panel gate combos
• (9) 12ft corral panels
• (32) 12ft PBR roof material
• (3) sections of roof covers for A frame seams
• Panel clamps & all hardware
• 48x36 total foot print

The bare metal/rustic option will get the same patina/surface rust as the oil pipes that most working ranches use. If you don't like the rustic-look, you should go with our powder coated option that won't rust.

How To Place An Order

Contact us by phone, email, or live chat to place your order. Delivery fee depends on location and mileage. Or, come pick up from our yard near Norco, California.
