Mare Motel Shed Row with 12x24 Stalls with 12x12 Covers & 12ft Breezeway 4-Rail *BARE METAL RUSTIC*

Mare Motel Shed Row with 12x24 Stalls with 12x12 Covers & 12ft Breezeway 4-Rail *BARE METAL RUSTIC*

$5,500.00

Note: Select if you want bare metal/rustic or powder coated finish

Color: Bare Metal - Rustic
Bare Metal - Rustic
Stall Quantity: 2-Stalls
2-Stalls
3-Stalls
4-Stalls
5-Stalls
6-Stalls
7-Stalls
8-Stalls
9-Stalls
10-Stalls

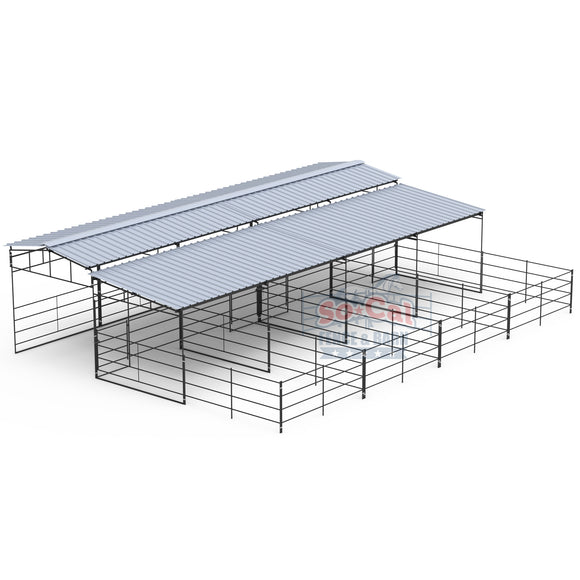

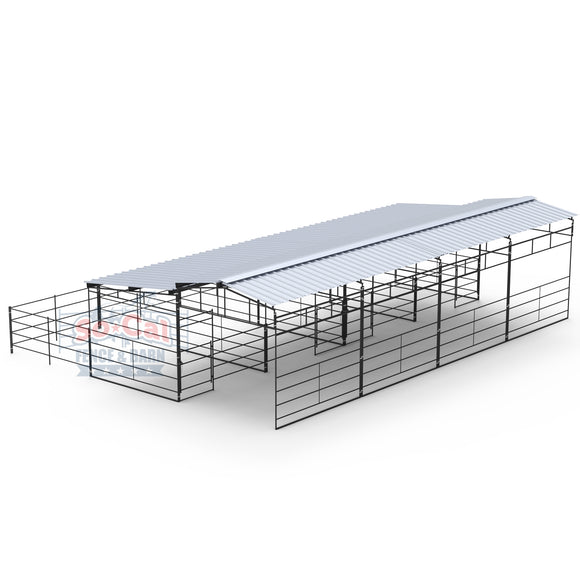

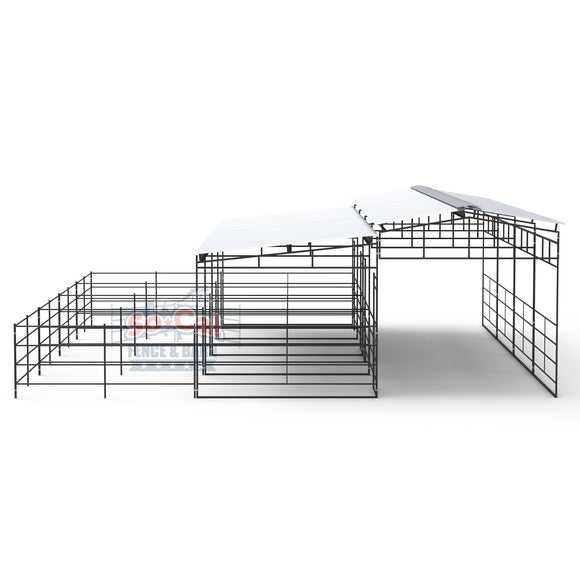

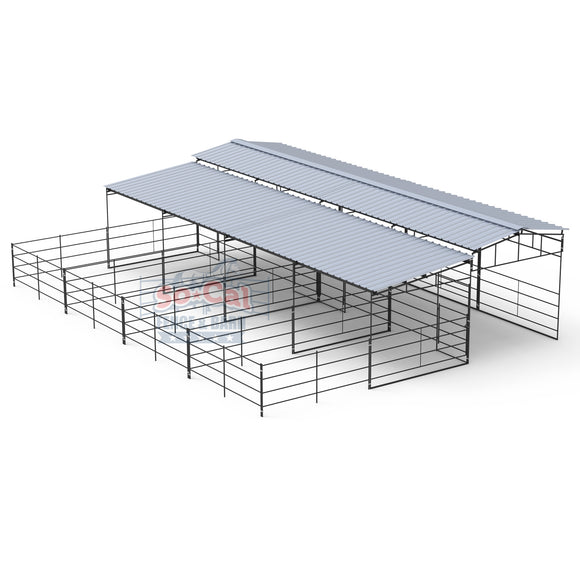

Mare Motel *Shed Row* with 12x24 Stalls with 12x12 Covers & 12ft Breezeway - Rustic

This Shed Row Mare Motel has the horse stalls in a single row, rather than across from each other. This configuration might work better for you if your property is limited on width, but has plenty length.



Color: Bare Metal/ Rustic. IF you prefer powder coated, you need to upgrade to 5-rail.

Shed Row Mare Motel Details

  • 14-Gauge Steel Construction
  • Expert Welds
  • All Top End Caps Are Welded Shut
  • Rail are inserted inside the vertical posts for 8x more strength
  • DIY installation with no welding or noisy metal grinding required
  • All hardware is included
  • American made
  • Lifetime warranty on all of the welds!
  • Snow Rating: 20lbs psf (can upgrade to 30lbs)
  • Wind rating: 120mph

Corral Panel Size:

  • Post: 1 5/8"
  • Rails: 1 1/4"
  • Center Support Tube: 1-1/4"
  • Material thickness: 14 Gauge Steel
  • Panel Length: 12 Ft
  • Panel Height: 5 Ft
  • Breezeway Height: 9-10ft
  • Space between 4 rails: 14 1/4"
  • Space between 5 rails: 10 1/4"

This DIY Mare Motel Kit Includes:

  • 12ft Shelter Panels
  • 12ft Breezeway Truss
  • 25ft Z Purlin Trusses
  • 12ft Panel Gate Combos
  • 12ft Corral Panels
  • 12ft PBR Roof Material
  • (Sections of Roof Ridge Caps
  • Panel Clamps with All Hardware
  • Self Tapping Screws with Rubber Washers
  • Ground Posts anchors

Bare Metal Pipe is NOT coated and will look like oil pipe

The bare metal panels will get the same patina/surface rust as the oil pipes that all working ranches use. If you don't want the rustic-look, then go with our 5-rail powder coated panels.

* THESE MARE MOTEL KITS ARE NOT ENGINEERED STRUCTURES AND DO NOT MEET ANY SPECIFIC BUILDING CODE CRITERIA. PLEASE, CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING.
