Mare Motel Shed Row with (4) 12x24 Stalls and 12ft Breezeway 4-Rail FULLY COVERED

Mare Motel Shed Row with (4) 12x24 Stalls and 12ft Breezeway 4-Rail FULLY COVERED

$17,595.95

Note: Select if you want bare metal/rustic or powder coated finish

Color: Bare Metal - Rustic



48x36 Mare Motel Shed Row with (4) 12x24 Stalls and 12ft Breezeway FULLY COVERED

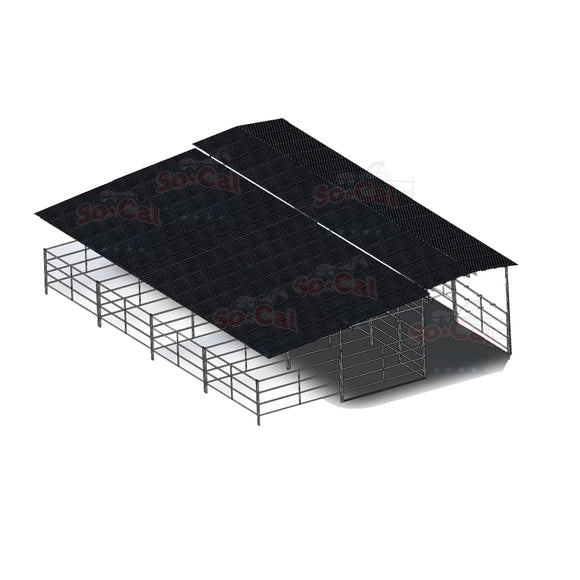

***NOTE: MAIN IMAGE IS A COMPUTER RENDERING FOR EXAMPLE PURPOSES ONLY***

This is our premium DIY mare motel shed row style which has four 12x24 stalls and a 12ft wide breezeway. Available in bare metal/rustic or power coated.

Color: Choose from bare metal/rustic or powder coated which is protected against rust.

*Ask about the 5-rail wood insert panels*

Features:

  • Steel Tubing (14 Gauge)
  • High quality welds/craftsmanship
  • Welded end caps
  • Easy DIY assembly/install
  • Each panel clamps together
  • Fully Covered Stalls

Panel Size:

  • Post: 1 5/8"
  • Rails: 1 1/4"
  • Center Support Tube: 1-1/4"
  • Material thickness: 14 Gauge Steel
  • Panel Length: 12 Ft
  • Panel Height: 5 Ft
  • Breezeway Height: 9-10ft
  • Space between 4 rails: 14 1/4"
  • Space between 5 rails: 10 1/4"

DIY Kit Includes:

  • (14) 12ft Shelter Panels
  • (5) 12ft Breezeway Truss
  • (20) 25ft Z Purlin Trusses
  • (4) 12ft Panel Gate Combos
  • (4) 12ft Corral Panels
  • (9) 24ft PBR Roof Material
  • (18) 6.5ft PBR Roof Material
  • (16) Sections of Roof Ridge Cap for A Frame Seams
  • (2) Packs Self Tapping Screws with Rubber Washers
  • (64) Panel Clamps with Hardware
  • (28) Ground Post with Hardware
  • 48x36 total foot print

The bare metal/rustic option will get the same patina/surface rust as the oil pipes that most working ranches use. If you don't like the rustic-look, you should go with our powder coated option that won't rust.

CLASS C POWDER COATING

Durable and cost-effective finish though not as strong as Class A. Minor scratches, chips, and blemishes are common. Additional scratches can occur during transit, touch-up paint available if needed.

* THESE MARE MOTEL KITS ARE NOT ENGINEERED STRUCTURES AND DO NOT MEET ANY SPECIFIC BUILDING CODE CRITERIA. PLEASE, CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING.

HOW TO PLACE AN ORDER:

  1. Submit an order request by adding the product to your Shopping Cart.
  2. On the Shopping Cart page, simply fill out your complete information then submit your order request.
  3. We will respond back with a estimate/invoice.
  4. Complete your purchase conveniently with electronic payment method.
