12x24 Stall with 12x12 Sloped Cover (4 Rail)

12x24 Stall with 12x12 Sloped Cover (4 Rail)

$2,280.00

Note: Select if you want bare metal/rustic or powder coated finish

Color: Powder Coated - Dapple Grey



12X24 Horse Stall with 12x12 Sloped Cover For Sale

This is our 12x24 Horse Stall kit with a 12x12 Sloped Roof on it which allows for half of the stall to be uncovered so your horse can enjoy some warm sunshine during cold weather conditions. All of our horse stalls are an easier installation process and they don't require any welding or noisy metal grinding for weeks on end!

12x24 Horse Stall with 12x12 Sloped Cover Details:

  • 14-Gauge steel construction
  • Welded end caps, won't fill with water or wasp nests
  • Sloped Roof
  • Roof Height: 10ft front | 9ft backside
  • Heavy Duty Zee Purlin Trusses
  • Expert Welds
  • Rails are inserted inside the posts for 8x more strength
  • Lifetime guarantee on all of our welds!

Color: Choose from bare metal/rustic or powder coated Dapple Grey. *Bare metal/Rustic will gain surface rust if not coated*

Horse Corral Panel Size:

  • Panel Height: 5ft tall
  • Post: 1-5/8"
  • Rails: 1-1/4"
  • Center Tube Support 1-5/8" - no flimsy flat straps!
  • All joints are coped. Not crimped.
  • 14-Gauge Steel
  • Space between rails: 14-1/4"
  • 4-Rail

Kit Includes:

  • (3) 12ft Corral Panels
  • (2) 12ft Shelter Panels
  • (1) 12ft Panel Gate Combo
  • (3) 13ft Z Purlin Trusses
  • (5) 12ft PBR Roof Material
  • (1) Pack Self Tapping Screws with Rubber Washers
  • (12) Panel Clamps with Hardware
  • (4) Ground Posts with Hardware

Gate Has Our Lockable EZ-Latch Gate Latch

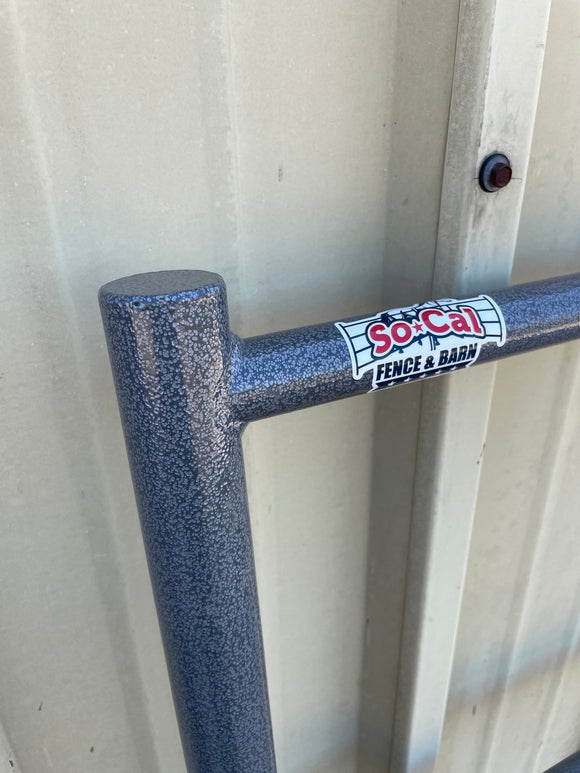

Our Patent-Pending Horse Panel Design With Inserted Rails

The bare metal panels will get the same patina/surface rust as the oil pipes that all working ranches use. Bare metal orders are normally made to order and may require longer production lead times. If you don't want the rustic-look, then go with our powder coated panels.

*SHADES ARE DESIGNED FOR OUR 12X24 STALLS AND ARE NOT INTENDED FOR ANY OTHER USE OTHER THAN WITH OUR PANELS.
* THESE SHADE KITS ARE NOT ENGINEERED STRUCTURES AND DO NOT MEET ANY SPECIFIC BUILDING CODE CRITERIA. PLEASE, CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING.


CLASS C POWDER COATING

Durable and cost-effective finish though not as strong as Class A. Minor scratches, chips, and blemishes are common. Additional scratches can occur during transit, touch-up paint available if needed.

HOW TO PLACE AN ORDER:

  1. Submit an order request by adding the product to your Shopping Cart.
  2. On the Shopping Cart page, simply fill out your complete information then submit your order request.
  3. We will respond back with a estimate/invoice.
  4. Complete your purchase conveniently with electronic payment method.
