Mare Motel with (8) 12x24 Stalls *FULLY COVERED* and 12ft Breezeway 4-Rail

Mare Motel with (8) 12x24 Stalls *FULLY COVERED* and 12ft Breezeway 4-Rail

$24,995.95

Note: Select if you want bare metal/rustic or powder coated finish

Color: Bare Metal - Rustic



8-Stall Mare Motel Kit With Fully Covered 12x24 Horse Stalls

This Mare Motel kits features (8) horse stalls that are each 12' x 24' in size and the entire stall has a cover over it.

The overall footprint of this Mare Motel is approximately 60' x 48'

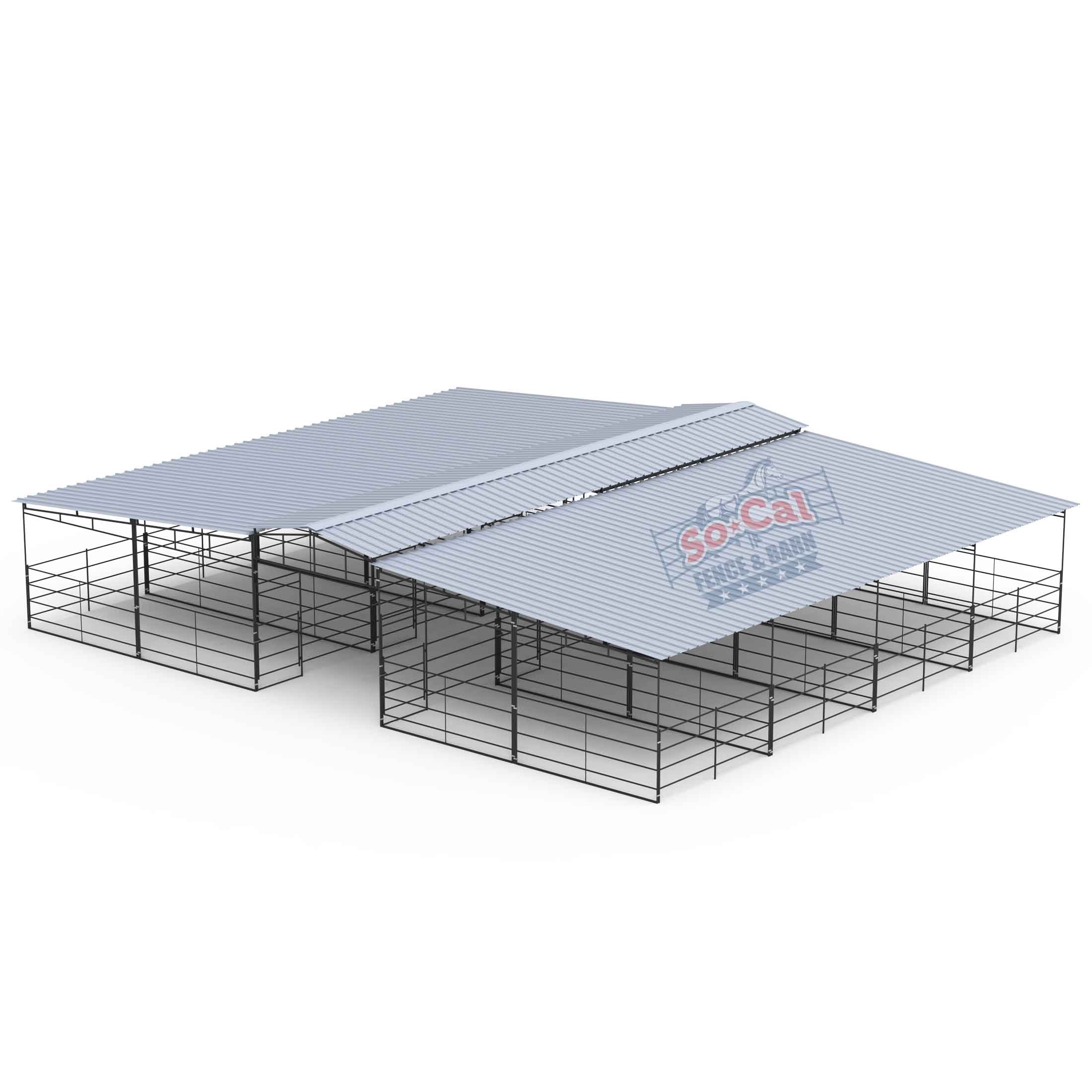

***NOTE: MAIN IMAGE IS A COMPUTER RENDERING FOR EXAMPLE PURPOSES ONLY***

Color: Choose from bare metal/rustic or powder coated which is protected against rust.

Mare Motel Kit Features:

  • Heavy 14-gauge steel construction
  • Has Eight 12x24 Stalls
  • 12ft-wide Breezeway (covered)
  • Expert welds
  • Top end caps are welded shut (no wasp nests)
  • Fully covered stalls
  • Horizontal rails are inserted inside the vertical posts
  • Choose from powder-coated or bare metal raw steel finish
  • Proudly American made
  • Lifetime warranty on all welds!

Horse Panel Size:

  • Post: 1-5/8" diameter
  • Rails: 1-1/4" diameter
  • Center Support Tube: 1-1/4"
  • Material thickness: 14-Gauge Steel
  • Panel Length: 12 Ft
  • Panel Height: 5 Ft
  • Breezeway Height: 11-10ft
  • Space between each rail: 14-1/4"

All gates have our lockable EZ-Latch Gate Latches

DIY Mare Motel Kit Includes:

  • (20) 12ft Shelter Panels
  • (5) 12ft Breezeway Trusses
  • (64) 25ft Z Purlin Trusses
  • (8) 12ft Panel Gate Combos
  • (8) 12ft Corral Panels
  • (34) 24ft PBR Roof Material
  • (34) 6.5ft PBR Roof Material
  • (16) Sections of Roof Ridge Cap for A Frame Seams
  • (128) Panel Clamps with Hardware
  • (3) Packs Self Tapping Screws with Rubber Washers
  • (40) Ground Posts with Hardware
  • 60x48 total foot print

The bare metal panels will get the same patina/surface rust as the oil pipes that all working ranches use. Bare metal orders are normally made to order and may require longer production lead times. If you don't want the rustic-look, then go with our powder coated panels.

CLASS C POWDER COATING

Durable and cost-effective finish though not as strong as Class A. Minor scratches, chips, and blemishes are common. Additional scratches can occur during transit, touch-up paint available if needed.

* THESE MARE MOTEL KITS ARE NOT ENGINEERED STRUCTURES AND DO NOT MEET ANY SPECIFIC BUILDING CODE CRITERIA. PLEASE, CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING.

HOW TO PLACE AN ORDER:

  1. Submit an order request by adding the product to your Shopping Cart.
  2. On the Shopping Cart page, simply fill out your complete information then submit your order request.
  3. We will respond back with a estimate/invoice.
  4. Complete your purchase conveniently with electronic payment method.
